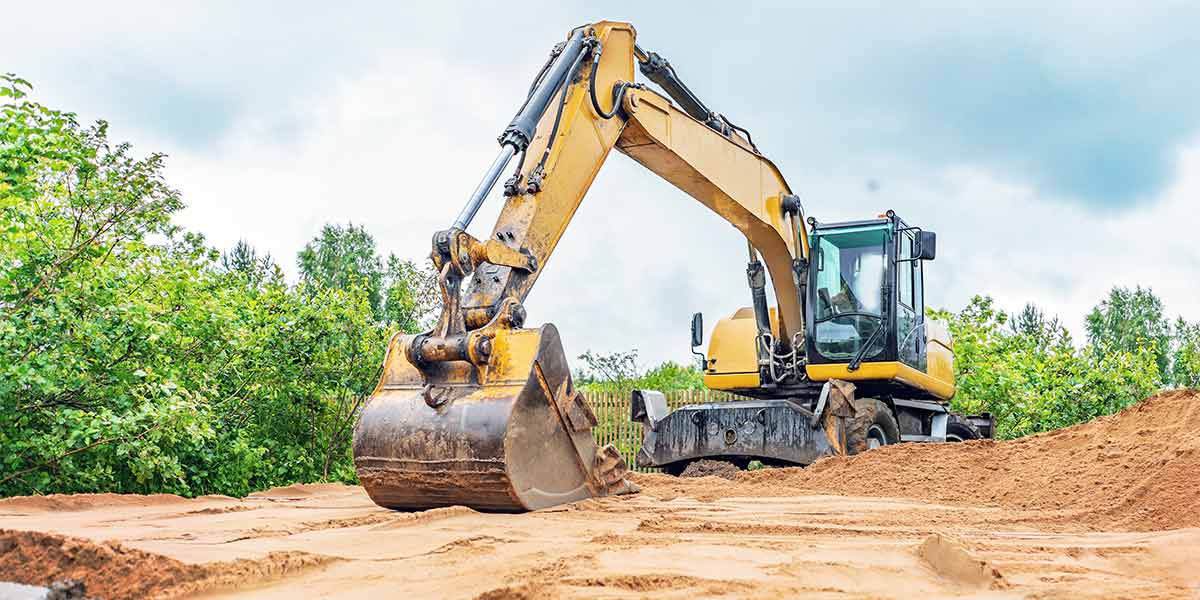

The Komatsu PC210 hydraulic excavator is a suitable choice for a range of construction and excavation tasks due to its exceptional performance and durability. The excavator is powered by the SAA6D107E-3 engine, which generates 123 kW (165 HP). The machine is notable for its strong digging capabilities, rapid operational speed, and intuitive control specifications.
The hydraulic system of the excavator optimizes for increased productivity and reduced fuel consumption. The Komatsu PC210 provides superior excavation performance due to its various bucket options and digging depth.
The ergonomic design of the operator’s cabin ensures a comfortable working environment. The cabin has features such as a wide field of view, a high-performance air conditioning system, a comfortable seat, and convenient control panels.
In addition to these features, the PC210 also attracts attention with its low maintenance costs and easy maintenance features. The Komatsu PC210 specs and performance of the machinery offer an ideal option for increasing productivity in many construction and floor works.
Komatsu PC210 Specs
| Brand | Komatsu |
| Model | PC210-10M0 |
| Series | PC 210 series |
| Type | Hydraulic excavator |
| Years Made | 2012-2023 |
Engine
| Brand | Komatsu |
| Model | SAA6D107E-1 |
| Type | Diesel |
| No. of Cylinders | 6 |
| Emissions | Final Tier 4 |
| Aspiration | Turbocharged aftercooled |
| Combustion | Direct Injection |
| Fan Drive | Mechanical |
| Governor | Electronic |
| Rated Power | 2000 RPM |
| Specs | US | Metric |
|---|---|---|
| Horsepower – Gross | 165 HP | 123 kW |
| Horsepower – Net | 165 HP | 123 kW |
| Displacement | 408 cu in. | 6686 cc |
| Bore | 4.2 in. | 10.7 cm |
| Stroke | 4.9 in. | 12.4 cm |
| Engine Oil Capacity | 6.1 gal | 23 L |
| Coolant Capacity | 5.8 gal | 22 L |
| Fuel Capacity | 106 gal | 400 L |
Bucket Capacity
| Category | yd³ | m³ |
|---|---|---|
| LD | 2.2 | 1.7 |
| GP | 1.3 1.4 | 1.0 1.1 |
| ME | 1.6 | 1.2 |
| HD | 1.3 | 1.0 |
| XHD | 1.3 | 1.0 |
Weight
| US | Metric | |
|---|---|---|
| Operating weight | 46,100 lbs | 20,900 kg |
Performance
| Arm Lenght | US | Metric |
|---|---|---|
| Max. Digging Reach | 370 in. | 939 cm |
| Max. Digging Depth | 236 in. | 600 cm |
| Max. Dumping Height | 274 in. | 696 cm |
| Max. Digging Height | 387 in. | 983 cm |
Travel Speed
| US | Metric | |
|---|---|---|
| Low Speed | 1.9 mph | 3.0 km |
| Mid Speed | 2.6 mph | 4.1 km |
| High Speed | 3.4 mph | 5.5 km |
Hydraulic system
| US | Metric | |
|---|---|---|
| Max Flow | 125 GPM | 475 LPM |
| Relief Valve Pressure | 5400 psi | 372 Bar |
| Hydraulic Tank | 35.7 gal | 135.0 L |
Dimensions
| US | Metric | |
|---|---|---|
| O/A Height of Cabin | 120 in. | 305 cm |
| O/A Lenght | 378 in. | 960 cm |
| O/A Width | 113 in. | 288 cm |
| Tail Swing Radius std arm. | 114 in. | 290 cm |
| Ground Clearance | 17 in. | 44 cm |
Due to its durability and high performance, the Komatsu PC210 is a popular machine in the construction industry. Although fuel consumption varies depending on the working conditions and other variables, it consumed an average of 4.5 gallons of fuel per hour during soil excavation. For a machine of this size and power, this is considered fuel-efficient. It is also environmentally friendly, thanks to its new engine, the Final Tier 4. I'd say that the Komatsu PC210 is a great excavator as a whole. Those looking for an alternative should look into the Cat 320 excavator.Komatsu PC210 Review
