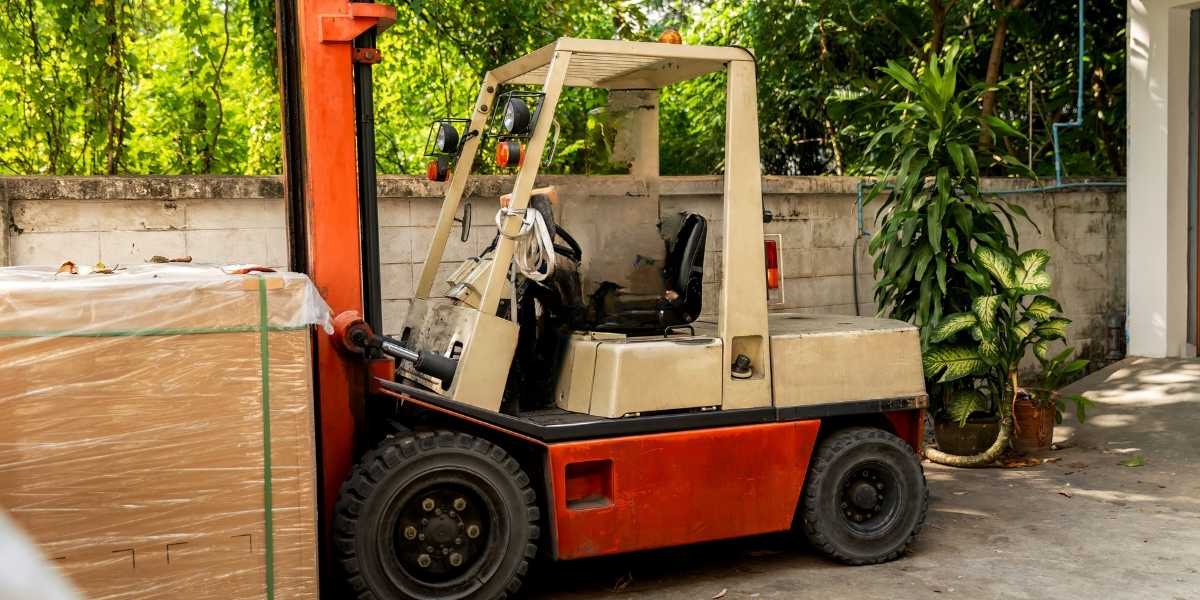

Nissan 50 Forklift Specs
| Manufacturer | Nissan |
| Model | AF50 |
| Model Code | MAP1F2A25LV / DV |
| Type | Forklift |
Engine
| Make/Model | Nissan K21 |
| Rated Speed | 2700 RPM |
| Torque Speed | 2000 RPM |
| Power Type | LP – G/LP |
| US | Metric | |
|---|---|---|
| Horsepower | 55 hp | 41 kW |
| Torque Power | 111.4 ft-lb | 151 Nm |
| Displacement | 126 cu in. | 2065 cc |
Drivetrain
| Transmission Type | Auto |
| Forward Gear | 1 |
| Reverse Gear | 1 |
| Operator Orientation | Sit |
| Tire Type | Pneumatic |
| Tire Size (front) | 21 x 8 – 9 Solid |
| Tire Size (rear) | 18 x 7 – 8 Solid |
| Service Brake | Drum and Shoe |
| Parking Brake | Hand |
| Steering | Full Hydraulic |
| Reverse/Forward | US | Metric |
|---|---|---|
| Max. Travel Speed | 10.6 mph | 17.0 km |
Operating Performance
| US | Metric | |
|---|---|---|
| Rated Load Capacity | 5000 lbs | 2268 kg |
| Load Center | 24 in. | 61 cm |
| Drawbar Pull Maximum | 3748 lbs | 1700 kg |
Weights
| US | Metric | |
|---|---|---|
| Weight (empty) | 2183 lbs | 992 kg |
| Truck Weight | 7910 lbs | 3585 kg |
| Front axle | 2665 lbs | 1210 kg |
| Rear axle | 5245 lbs | 2375 kg |
| Front axle with rated load | 10225 lbs | 4795 kg |
| Rear axle with rated load | 1685 lbs | 790 kg |
Dimensions
| US | Metric | |
|---|---|---|
| Length | 93 in. | 236 cm |
| Width | 46 in. | 118 cm |
| Height (top of OHG) | 82 in. | 209 cm |
| Mast lowered | 83 in. | 210 cm |
| Mast (full height) | 130 in. | 330 cm |
| Mast extended with LBR | 179 in. | 456 cm |
| Wheelbase | 59 in. | 150 cm |
| Turning Radius | 81 in. | 205 cm |
Grade Clearance
| Ramp Brakover Angle | 39 |
| Departure Angle | 40 |
| Approach Angle | 25 |
The Nissan 50 forklift is a forklift I can recommend to those who are looking for a stable forklift that lifts 5000 lbs. I know that the engine is smooth and very stable. But it can be difficult to find parts, depending on your location. If you are looking for a powerful and reliable forklift, consider this.
forklift nissan 50 Review
Comfort
Reliability
Performance
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Nissan 50 manual, please specify by commenting.
