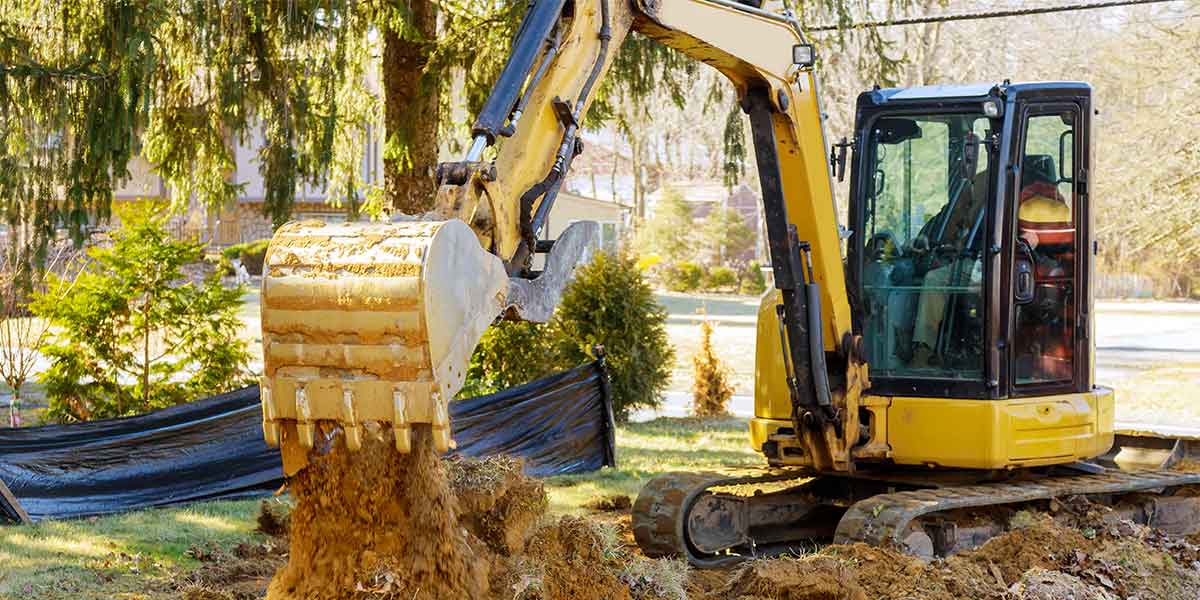

John Deere 60g excavator is extremely maneuverable and productive in small locations. The John Deere 60 excavator comes with a variety of tracks to fit your unique requirements. The revised, larger cab of the John Deere 60g provides great sight in all directions. Rubber tracks are excellent for traversing paved terrain as well. Steel tracks and steel tracks with rubber pads can be utilized for a number of purposes. Optional rubber grousers are available to accommodate both the work-anywhere flexibility of rubber tracks and the serviceability of steel rails. JD 60g excavator has auto-speed control for fast travel. When the machine faces a larger load, the vehicle automatically reduces to a low speed. The EPA FT4/EU Stage IV technology is standard on 60g John Deere excavators. This enables straightforward, fuel-efficient, completely integrated, and fully assisted excavation. When the hydraulics are not in use, the Auto-idle function automatically decreases engine speed. The Auto-shutdown function helps you conserve every last drop of fuel.
JD 60g Specs
Brand | John Deere |
Model | 60g |
Series | G series |
Type | Mini excavator |
Years Made | 2013-2022 |
Engine
Brand | Yanmar |
Model | 4TNV98C-WHB |
Type | Diesel |
No. of Cylinders | 4 |
Emissions | Tier 4/EU Stage IV |
Aspiration | Natural |
Combustion | Direct Injection |
Fuel system | Common Rail Fuel Injection |
Rated Power | 2000 RPM |
Torque Power | 1300 RPM |
Specs | US | Metric |
---|---|---|
Horsepower | 53.0 HP | 39.6 kW |
Displacement | 203 cu in. | 3319 cc |
Bore and Stroke | 3.9×4.3 in. | 9.8×11.0 cm |
Coolant Capacity | 2.0 gal | 7.7 L |
Engine Oil Capacity | 3.0 gal | 11.2 L |
Fuel Capacity | 31.7 gal | 120.0 L |
Engine Dimensions
US | Metric | |
---|---|---|
Length | 31.1 in. | 79.0 cm |
Width | 24.1 in. | 61.3 cm |
Height | 38.9 in. | 98.7 cm |
Engine Weight
US | Metric | |
---|---|---|
Dry Weight | 595 Ibs | 270 kg |
John Deere 60g Lift Capacity
Canopy and Standard Counterweight
Ground Level at 3.05m | Over Front | Over Side |
---|---|---|
Standard Arm | 8550 lbs | 3880 kg |
Long Arm | 8420 lbs | 3820 kg |
Cabin and Standard Counterweight
Ground Level at 3.05m | Over Front | Over Side |
---|---|---|
Standard Arm | 8550 lbs | 3880 kg |
Long Arm | 8400 lbs | 3810 kg |
John Deere 60g Weight
US | Metric | |
---|---|---|
Operating weight (std. canopy) | 13250 lbs | 6010 kg |
Operating weight (std. cabin) | 13620 lbs | 6180 kg |
Performance
US | Metric | |
---|---|---|
Max. Digging Reach | 245 in. | 623 cm |
Max. Digging Depth | 148 in. | 377 cm |
Max. Dumping Height | 164 in. | 417 cm |
Max. Cutting Height | 234 in. | 596 cm |
Swing System
Swing Speed | 9.5 RPM |
Left | 80° |
Right | 60° |
Travel Speed
US | Metric | |
---|---|---|
Low Speed | 1.8 mph | 2.9 km |
High Speed | 3.0 mph | 4.8 km |
Hydraulic system
US | Metric | |
---|---|---|
Pump Flow | 38.0 GPM | 144.0 LPM |
Auxiliary Flow | 24.2 GPM | 91.5 LPM |
Hydraulic Tank | 21.1 gal | 80.0 L |
Dimensions
US | Metric | |
---|---|---|
O/A Height | 100 in. | 253 cm |
Track Length | 98 in. | 250 cm |
Track Width | 16 in. | 40 cm |
Tail Swing Radius std arm. | 39 in. | 100 cm |
Upperstructure Width | 73 in. | 185 cm |
Ground Clearance | 13 in. | 34 cm |
Undercarrige
US | Metric | |
---|---|---|
Undercarriage Width | 79 in. | 200 cm |
Track Width | 16 in. | 40 cm |
Track Length | 98 in. | 250 cm |
Ground Pressure Canopy | 3.9 psi | 26.9 kPa |
Blade
US | Metric | |
---|---|---|
Blade Width | 79 in. | 200 cm |
Blade Height | 15 in. | 38 cm |
Max. Blade Lift Above Ground | 18 in. | 46 cm |
Max. Blade Drop Below Ground | 14 in. | 36 cm |
When working in tight spaces, the John Deere 60g makes things easier. This easy-to-use mini excavator helps you save both time and money.John Deere 60g Review
