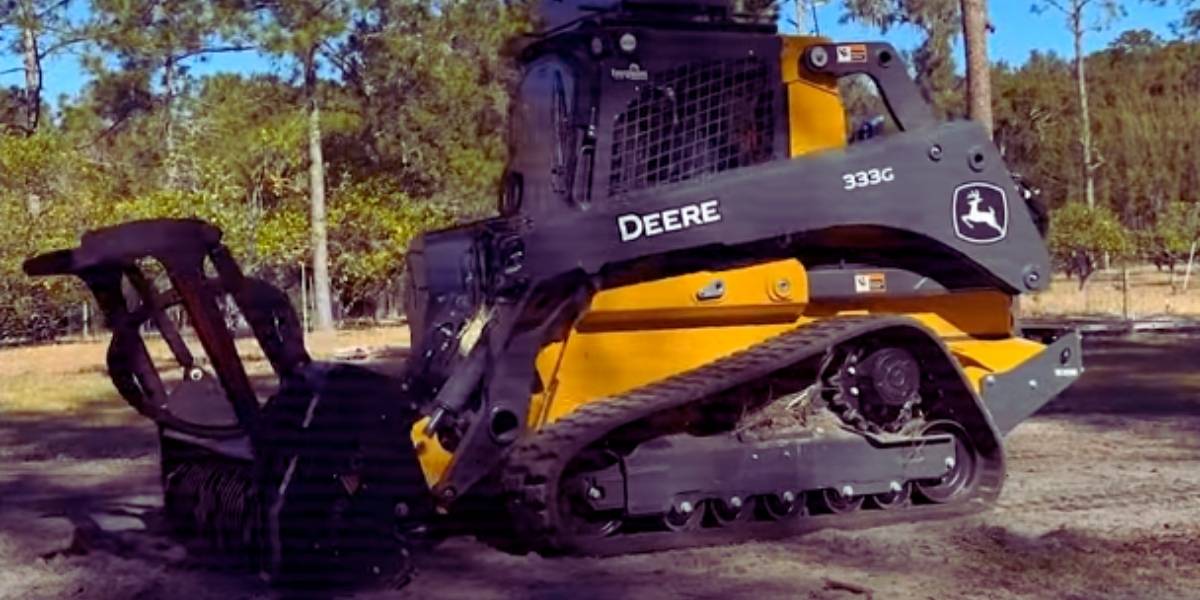

The John Deere 333G is a powerful and versatile tracked loader with a 96.6 horsepower Yanmar diesel engine and an operating weight of 12,100 lbs. With a lifting capacity of 3,700 lbs and a dump height of 11 ft, it delivers effective performance in heavy-duty tasks. Its 41 GPM high-flow hydraulic system easily supports attachments like mulching heads, augers, dozer blades, and more.
The operator cabin is spacious, ergonomic, and comfortable. The wide-opening door allows for easy entry and exit, while the pilot controls offer the ability to switch between ISO or AG control modes. Safety features include a rearview camera, digital display, and operator code entry, while the manual boom lowering system provides a safe exit in emergency situations. The John Deere 333G stands out as one of the most powerful options in its segment in terms of comfort, safety, and versatile use.
John Deere 333G Specs
Manufacturer | John Deere |
Model | 333G |
Type | Compact track loader |
Years Made | 2018-2025 |
Engine
Brand | Yanmar |
Engine Model No | 4TNV94FHT |
Type | Diesel |
No. of Cylinders | 4 |
Aspiration | Turbocharged |
Aftertreatment | DPF |
Emissions | EU Stage V, EPA Tier IV Final |
Combustion | Direct injection |
Lubricating System | Forced lubrication with trochoid pump |
Air Cleaner | Dry dual element |
Rated Speed | 2500 RPM |
Max. Torque | 1700 RPM |
Starter | DC 12 V, 3.0 kW |
Alternator | DC12 V, 55 A |
Battery | 12 V 799CCA |
US | Metric | |
---|---|---|
Gross Power | 100 HP | 74.6 kW |
Net Power | 96.6 HP | 72 kW |
Peak Torque | 291 lb-fts | 395 N-m |
Displacement | 186 cu. in. | 3048 cc |
Bore | 3.7 in. | 9.4 cm |
Stroke | 4.3 in. | 11.0 cm |
Fuel Capacity | 30 gal | 114 L |
Performance
US | Metric | |
---|---|---|
Operating Capacity (Tipping 35%) | 11630 lbs | 5280 kg |
Operating Capacity (Tipping 50%) | 5815 lbs | 2640 kg |
Tipping Load | 7400 lbs | 3360 kg |
Boom Breakout Force | 8250 lbs | 3746 kg |
Bucket Breakout Force | 13750 lbs | 6243 kg |
Powertrain
Transmission | High-torque heavy-duty planetary reduction final drive |
Controls | Electro hydraulic |
Pump | Axial-piston hydrostatic |
Speed | 2 |
Brake | Wet discs |
Travel Speed
US | Metric | |
---|---|---|
Low | 5.3 mph | 8.5 km |
High | 7.8 mph | 12.6 km |
Hydraulic System
US | Metric | |
---|---|---|
Standard Flow | 25.0 GPM | 95 LPM |
Optional Flow | 41.1 GPM | 156 LPM |
System Pressure | 3450 psi | 238 Bar |
Dimensions
US | Metric | |
---|---|---|
Length w/o Bucket | 122 in. | 310 cm |
Length with Bucket | 146 in. | 371 cm |
Width w/o bucket (17.7 in track) | 80.7 in. | 205 cm |
ROBS Height | 90.5 in. | 230 cm |
Height to Hinge Pin | 132 in. | 335 cm |
Dump Height | 106 in. | 269 cm |
Dump Reach | 28 in. | 71 cm |
Ground Clearance | 9.4 in. | 24 cm |
Undercarriage
US | Metric | |
---|---|---|
Track Width (narrow-optional) | 15.8 in. | 40.0 cm |
Track Width (wide-standard) | 17.7 in. | 45.0 cm |
Ground Pressure (standard) | 5.7 psi | 39.3 kPa |
Ground Pressure (optional) | 5.0 psi | 34.1 kPa |
Operating Weight | 14000 lbf | 6356 kg |
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly.
