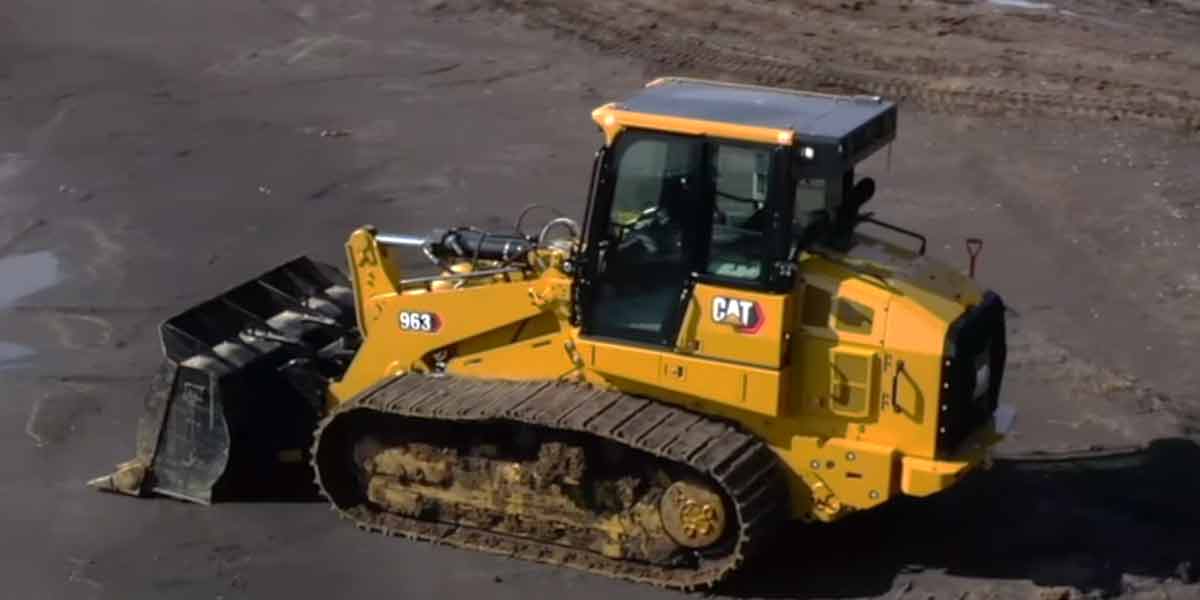

The Cat 963 Track Loader is the appropriate machinery for performing heavy-duty work in challenging environments. You are able to dig, load, and move material with ease in a variety of applications, including building, demolition, soil preparation, and landscaping. With its low ground pressure, this loader provides superior traction on slopes and soft ground. The Cat 963 Track Loader provides the adaptability you require to successfully complete the task at hand.
The Cat C7 engine is powerful while remaining fuel efficient. Because of the low-friction piston rings and oil jets, the engine is also more efficient in its use of gasoline. This is because friction has been reduced by thirty percent in comparison to earlier models.
Cat 963 Specs
| Brand | Cat |
| Model | 963 |
| Type | Track loader |
| Years Made | 1987- Today |
Engine
| Brand | Caterpillar |
| Model | C7.1 |
| Type | Diesel 4 stroke |
| Emissions | EPA Tier 4 Final, EU Stage V |
| Build Number | 12A |
| No. of Cylinders | 6 |
| Aspiration | Turbocharged |
| Combustion System | Direct Injection |
| Rotation | Counterclockwise |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1800 RPM |
| US | Metric | |
|---|---|---|
| Horsepower (gross) | 202 HP | 151 kW |
| Horsepower (net) | 190 HP | 142 kW |
| Displacement | 428 cu in. | 7010 cc |
| Bore | 4.1 in. | 10.5 cm |
| Stroke | 5.3 in. | 13.5 cm |
| Fuel Tank Capacity | 85 gal | 320 L |
| DEF | 4.0 gal | 17 L |
| Engine Oil Capacity | 4.5 gal | 17 L |
| Coolant Capacity | 8.5 gal | 32 L |
Engine Dimensions and Weight
| US | Metric | |
|---|---|---|
| Length | 41.9 in. | 106.4 cm |
| Width | 32.3 in. | 82.0 cm |
| Height | 35.7 in. | 90.7 cm |
| Dry Weight | 1576 lbs | 715 kg |
Transmission
| Transmission | Hydrostatic |
| Gear | Infinite |
Travel Speed
| US | Metric | |
|---|---|---|
| Max. Travel Speed | 6.2 mph | 10 km |
Performance
| US | Metric | |
|---|---|---|
| Rated Operating Capacity | 10,460 lbs | 4,640 kg |
| Tipping Load | 29,900 lbs | 13,250 kg |
| Bucket Width | 101 in. | 257 cm |
| Breakout Force | 40,200 lbs | 180 kN |
Bucket Capacity
| Bucket Type | yd³ | m³ |
|---|---|---|
| General Purpose | 3.2 | 2.5 |
| Performance Series | 3.7 | 2.8 |
| Multi-Purpose | 2.6 | 2.0 |
| Landfill ll | 4.1 | 3.1 |
| Wide Flush | 3.8 | 2.8 |
| General Purpose Fusion | 3.2 | 2.5 |
| Wide Fusion | 3.5 | 2.7 |
Cat 963 Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 44,880 lbs | 20,360 kg |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 56 GPM | 256 LPM |
| Std. System Pressure | 4061 psi | 280 Bar |
| Hydraulic Oil Capacity | 23.7 gal | 90 L |
Dimensions
| US | Metric | |
|---|---|---|
| Std. Machine Width | 91 in | 232 cm |
| Std. Shoe Width | 22 in. | 55 cm |
| Height to Top of Cab | 131 in. | 333 cm |
| Hinge Pin Height | 155 in. | 394 cm |
| Length to Front of Tracks Including Rear Bumper | 195 in. | 494 cm |
| Overall Shipping Length Without Bucket | 230 in. | 584cm |
| Turning Radius | 158 in. | 401 cm |
Ripper
The Cat 963 features radial rippers.
| US | Metric | |
|---|---|---|
| Weight | 1750 lbs | 795 kg |
| Maximum Clearance Raised | 34 in. | 87 cm |
| Maximum Penetration | 11 in. | 27 cm |
| Overall Ripping Width | 77 in. | 195 cm |
| Maximum Penetration Force | 39,650 lbf | 176 kN |
| Maximum Pry Out Force | 19,040 lbf | 85 kN |
The Cat 963 Track Loader is the ideal selection for any challenging work you need to do. They are designed to handle anything from difficult terrain and harsh climates to demanding tasks and big loads thanks to the robust construction with which they are outfitted.Cat 963 Review
Performance
Features
Reliability
Drive
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Cat 963 manual, please specify by commenting.
