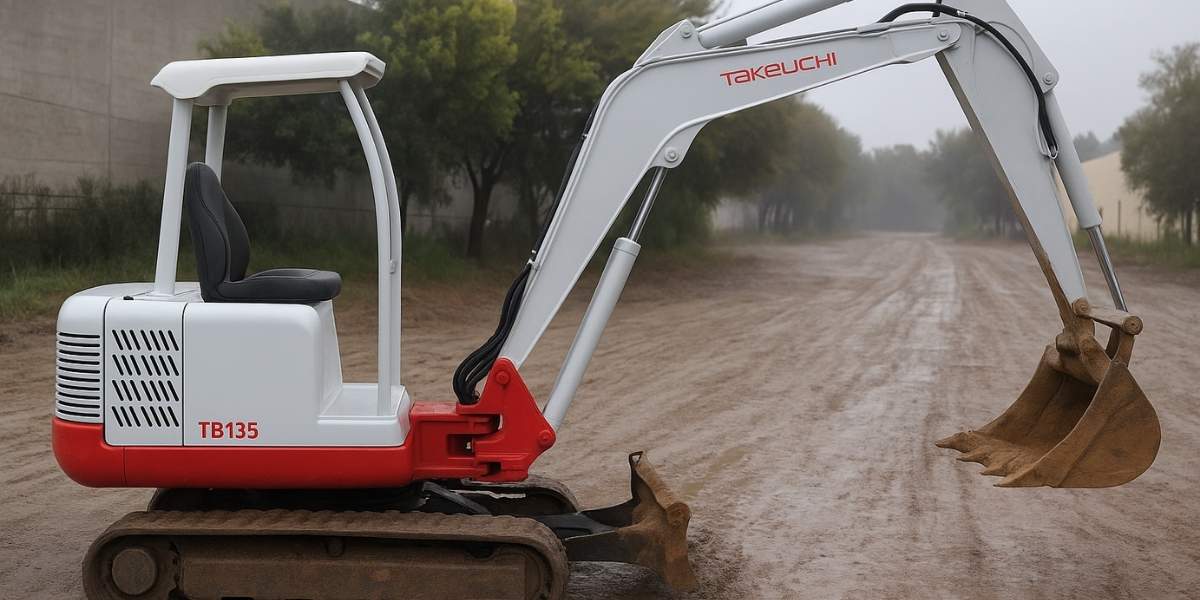

Takeuchi TB135 has plenty of digging power and a stable chassis in a still-compact package. Operators usually like the way it pulls in the trench, the reach it offers compared with true zero tail machines, and the generally reliable Yanmar engine, which will run for high hours if it has had halfway decent maintenance. On older units the complaints you hear most often are about hydraulic leaks, lazy or uneven functions, two-speed travel that stops working properly, and fuel or hydraulic load issues that can make the engine bog down under heavy work. Because of that, I always tell buyers to pay extra attention to a warm hydraulic test, pins and bushings in the boom and arm, the undercarriage, and the travel speed function before committing to a used TB135, especially if it has come out of rental.
Takeuchi TB135 Specs
| Brand | Takeuchi |
| Model | TB135 |
| Type | Hydraulic mini excavator |
| Years Made | 2004-2009 |
Engine Specs
| Brand | Yanmar |
| Engine Model No | 3TNV88-QTB |
| Type | Diesel |
| No. of Cylinders | 3 |
| Aspiration | Naturally |
| Combustion | Direct injection |
| Compression Ratio | 19.1 (Effective 17.2) |
| Cooling System | Radiator |
| Temp. Switch | Water seperator |
| Rated Speed | 2300 RPM |
| Max. Torque | 1400 RPM |
| US | Metric | |
|---|---|---|
| Horsepower *Gross | 27.8 HP | 20.7 kW |
| Torque Power | 79 ft-lb | 107.1 N-m |
| Displacement | 100.2 cu in. | 1642 cc |
| Bore | 3.4 in. | 8.8 cm |
| Stroke | 3.5 in. | 9.0 cm |
| Lubrication | 1.3 gal | 4.8 L |
| Cooling System | 1.5 gal | 5.7 L |
| Fuel Tank Capacity | 3.6 gal | 13.5 L |
Performance
| US | Metric | |
|---|---|---|
| Max. Digging Depth | 134 in. | 340 cm |
| Max. Vertical Dig Depth | 103 in. | 262 cm |
| Max. Dump Height | 150 in. | 381 cm |
| Max. Reach | 210 in. | 533 cm |
| Max. Bucket Digging Force | 8422 lbs | 3820 kg |
| Max. Arm Digging Force | 3536 lbs | 1604 kg |
| Traction Force | 8653 lbs | 3925 kg |
Lifting Capacity
| Over front | Blade Down | Over Side |
|---|---|---|
| +6.6 ft | 1512 lbs (686kg) | 1512 lbs (686 kg) |
| Ground Level | 2581 lbs (1171kg) | 1505 lbs (683kg) |
| -3.3 ft | 2603 lbs (1181 kg) | 1485 lbs (674kg) |
Travel Speed
| US | Metric | |
|---|---|---|
| Low Speed | 1.5 mph | 2.4 km |
| High Speed | 2.9 mph | 4.7 km |
Hydraulic System
| US | Metric | |
|---|---|---|
| Total Hydraulic Flow (2+1+1) | 9.9/5.8/2.7 GPM | 37.5/22.0/10.2 LPM |
| Auxiliary Flow | 15.6 GPM | 59.1 Lpm |
| Hydraulic System Pressure | 3000 psi | 207 Bar |
| Hydraulic System Capacity | 22.5 gal | 85.2 L |
Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 7831 Ibs | 3552 kg |
Dimensions
| US | Metric | |
|---|---|---|
| Width | 64 in. | 163 cm |
| Height | 96 in. | 244 cm |
| Transport Length | 199 in. | 506 cm |
| Ground Clearance | 11.6 in. | 29.5 cm |
| Min Front Swing Radius | 60 in. | 152.4 cm |
| Tail Swing Radius | 55 in. | 140.0 cm |
| Dozer Blade Width | 64 in. | 163.0 cm |
| Dozer Blade Height | 16 in. | 40.6 cm |
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Takeuchi Tb135 manual, please specify by commenting.
