Kubota kx057 excavator is the ideal size for digging in confined locations. Its 47.6 horsepower engine is meant to run efficiently, decreasing noise, vibration, and fuel consumption. The Kubota 57 excavator includes options that make it simple to modify oil flow rates without the use of extra tools or complicated procedures. Up to 5 oil flow rates matching various attachments can be programmed and saved in memory on the digital display. Kubota kx057 is now comfier than ever. The welcoming cab boasts a wide entry, enough legroom, and a premium seat, as well as upgraded safety measures such as the Roll-over Protective Structure (ROPS) and Falling Object Protection Structure (FOPS). The cab’s operability has been considerably improved with more user-friendly features than ever before.
Kubota 57 Excavator Specs
| Brand | Kubota |
| Model | KX057-4 |
| Series | Kx series |
| Type | Mini excavator |
| Years Made | 2009-2022 |
Engine Specs
| Brand | Kubota |
| Engine Model No | V2607-DI |
| Type | Diesel |
| No. of Cylinders | 4 |
| Emissions | Interim Tier 4 / Stage #A |
| Combustion | Direct injection |
| Rotation | Counterclockwise Viewed on Flywheel |
| Aspiration | Turbocharged |
| Rated Speed | 2200 RPM |
| US | Metric | |
|---|---|---|
| Gross power | 47.6 HP | 35.5 kW |
| Net Power | 45.4 HP | 33.8 kW |
| Displacement | 159.6 cu in. | 2615 cc |
| Bore and Stroke | 3.4×4.4 in. | 8.7×11.0cm |
| Fuel Tank Capacity | 19.8 gal | 75 L |
| Oil Capacity | 2.7 gal | 10.2 L |
Engine Dimensions
| US | Metric | |
|---|---|---|
| Length | 25.6 in. | 65.0 cm |
| Width | 18.7 in. | 47.5 cm |
| Height | 26.8 in. | 68.0 cm |
Engine Weight
| US | Metric | |
|---|---|---|
| Dry Weight | 518 lbs | 235 kg |
Performance
| US | Metric | |
|---|---|---|
| Breakout Force Bucket | 9509 lbf | 42.3 kN |
| Breakout Force Arm | 5507 lbf | 24.5 kN |
| Max. Digging Depth | 229.3 in. | 582 cm |
| Max. Dumping Height | 163.8 in. | 416 cm |
| Ground Pressure | 4.55 psi | 31.4 KPa |
| Max. Arm Digging Force | 1918 lbs | 870 kg |
| Traction Force | 14478 lbf | 64.4 kN |

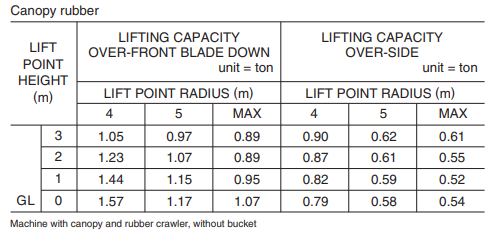

Lifting Capacity
Swing System
| Right | 55° |
| Left | 70° |
| Slew Speed | 9.3 RPM |
Travel Speed
| US | Metric | |
|---|---|---|
| Low Speed | 1.7 mph | 2.8 km |
| High Speed | 3.0 mph | 4.9 km |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump capacity | 14.8 variable × 2 9.8 Gear × 1 | 56.1 variable × 2 37.0 Gear × 1 |
| Auxiliary Flow – Left | 9.8 GPM | 37 Lpm |
| Auxiliary Flow – Right | 19.8 GPM | 75 Lpm |
| Hydraulic Oil Capacity | 20.9 gal | 79 L |
Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 12445 Ibs | 5645 kg |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 100.4 in. | 255 cm |
| Width | 77.2 in. | 196 cm |
| Lenght | 217.3 in. | 552 cm |
| Ground Clearance | 12.2 in. | 31 cm |
Undercarrige
| Shoe Width | 15.7 in. | 40.0 cm |
| Crawler Length | 98.4 in. | 250 cm |
| Tumbler Distance | 78.3 in. | 199 cm |
Blade
| US | Metric | |
|---|---|---|
| Lift Above Ground | 17.3 in. | 44 cm |
| Drop Below Ground | 15.9 in. | 40.5 cm |
| Width | 77.2 in. | 196 cm |
| Height | 16.1 in. | 41 cm |
I've used the Kubota 057 for a few hundred hours and have had no issues with it except for little sluggishness in the hydraulics while using the boom or swing.Kubota kx057 Reviews
Performance
Features
Reliability
Drive
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Kubota Kx057 manual, please specify by commenting.
