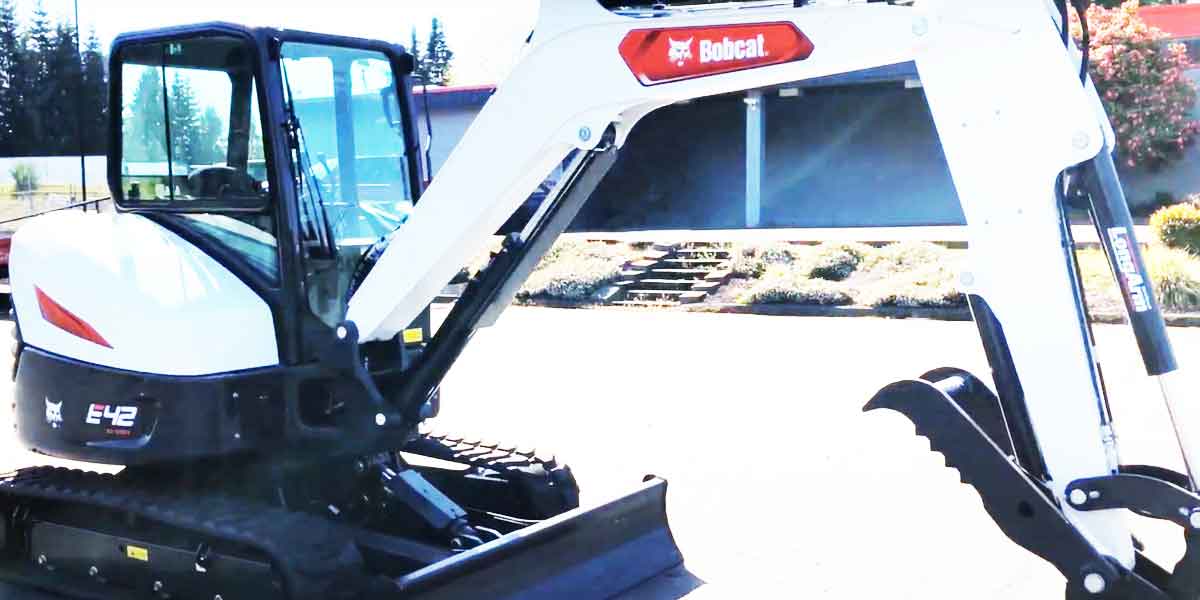

Bobcat e42 excavator is a member of the R2 series. The e42 Bobcat is outfitted with features that allow it to excel in a wide range of applications. Its applications range from light construction to heavy demolition. The machine is also used for gardening and landscaping. Bobcat e42 mini excavator can be used for road construction, sewer maintenance, water line installation, grading, and snow removal, among other things.
The Bobcat e42 has a lifting capacity of 4900 pounds, allowing it to operate at high speeds while performing heavy-duty tasks like digging trenches or moving large rocks. Because of its low center of gravity and operating weight of 2800 pounds, this machine is less likely to tip over during operation. This makes it safer for operators because they don’t have to worry about the machine collapsing on them while they’re working.
With its powerful, efficient, and versatile features, the Bobcat e42 provides user convenience. The operator station on the e42 Bobcat is rock-solid, with a new design that maximizes visibility and comfort. The operator has more control over the machine and can see gauges, switches, and knobs from any angle. The seat is hydraulically adjustable for added comfort, security, and convenience. In addition to its comfortable design, this machine’s operator station provides easy access to critical controls, such as the hydraulic system pressure gauge on top of the hydraulic control panel for quick pressure monitoring; additional controls are located within easy reach on either side of the seat for quick adjustments during operation. The excavator has an electronically controlled quick coupler and a digging depth of up to 7 feet 6 inches. It also includes an auto-idle feature, which allows the machine to idle when not in use.
Bobcat e42 has a strong steel frame that allows it to carry extra weight while remaining stable at all times. It also has a standard boom hoist cable guard, which helps prevent damage when lifting heavier loads or working in areas with overhead obstructions.
Bobcat E42 Specs
| Manufacturer | Bobcat |
| Model | E42 |
| Type | Mini excavator |
| Series | R2 series |
| Years Made | 2020-2022 |
Engine
| Engine Make | Bobcat |
| Model | D18 |
| Type | Diesel |
| No. of Cylinders | 3 |
| Emissions | Tier 4 |
| Aspiration | Turbocharged |
| Lubrication | Forced lubrication with cartridge type filter |
| Cooling System | Liquid-cooled |
| Air Filter | Dry paper element |
| Ignition | Diesel-compression |
| Coolant | Propylene glycol |
| Rated Speed | 2200 RPM |
| US | Metric | |
|---|---|---|
| Horsepower | 42 HP | 31 kW |
| Displacement | 110 cu in. | 1794 cc |
| Bore | 3.5 in. | 9.0 cm |
| Stroke | 3.7 in. | 9.4 cm |
| Fuel Capacity | 19 gal | 72 L |
| Coolant Capacity | 2 gal | 8 L |
| Oil Capacity | 7 qts | 6.3 L |
Performance
| Standard Arm | US | Metric |
|---|---|---|
| Arm Breakout Force | 5820 lbf | 25.9 kN |
| Bucket Breakout Force | 9601 lbf | 42.7 kN |
| Rated Lift Capacity O/blade, 10 ft. (3 m) | 4921 lbs | 2232 kg |
| Rated Lift Capacity O/side, 10 ft. (3 m) | 2083 lbs | 945 kg |
Long Arm Performance
| US | Metric | |
|---|---|---|
| Tail Swing Type/Overhang | 12.5 in. | 31.8 cm |
| Weight | 10,425 lbs | 4729 kg |
| Dig Depth | 136.3 in. | 346.3 cm |
| Reach at Ground Level | 218.5 in. | 555 cm |
| Max. Dump Height | 155.3 in. | 394.4 cm |
Extendable Arm Performance
| US | Metric | |
|---|---|---|
| Tail Swing Type/Overhang | 12.5 in. | 31.8 cm |
| Weight | 10,666 lbs | 4838 kg |
| Dig Depth | 148.4 in. | 376.9 cm |
| Reach at Ground Level | 229.6 in. | 583.1 cm |
| Max. Dump Height | 161.2 in. | 409.4 cm |
Ground Pressure Specifications
| Arm | Rubber Track | Steel Track |
|---|---|---|
| Standard Arm | 32.3 kPa 4.68 psi | 37.7 kPa 5.47 psi |
| Long Arm | 34.2 kPa 4.96 psi | 39.9 kPa 5.79 psi |
| Extendable Arm | 35.0 kPa 5.07 psi | 40.9 kPa 5.93 psi |
Travel Speed
| US | Metric | |
|---|---|---|
| Low Speed | 1.6 mph | 2.6 km |
| Max. Speed | 3.3 mph | 5.2 km |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 26.2 GPM | 99.1 LPM |
| Auxiliary Flow | 20.0 GPM | 75.7 LPM |
| 2nd Aux. Flow | 12.0 GPM | 45.4 LPM |
| System Pressure | 3625 psi | 250 Bar |
| Hydraulic Capacity | 14.5 gal | 54.9 L |
Hydraulic Cycle Times
| Bucket Curl | 2.8 sec. |
| Bucket Dump | 2.2 sec. |
| Boom Swing Left | 4.2 sec. |
| Boom Swing Right | 4.5 sec. |
Slew System
| Slew motor | Axial piston connected to a planetary |
| Slew Circle | Single, ball bearing with internal gear |
| Slew Rate | 9.0 RPM |
Bobcat E42 Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 9830 lbs | 4459 kg |
Undercarriage
| Crawler Track | Sealed track rollers with box-section track roller frame |
| Track Adjuster | Grease-type track adjusters with shock-absorbing recoil springs |
| Width | 72 in. 185 cm |
With its powerful, efficient, and versatile features, the Bobcat e42 provides user convenience. It's ideal for professionals who need to get more done in less time.Bobcat E42 Reviews
Performance
Features
Reliability
Drive
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Bobcat E42 manual, please specify by commenting.
