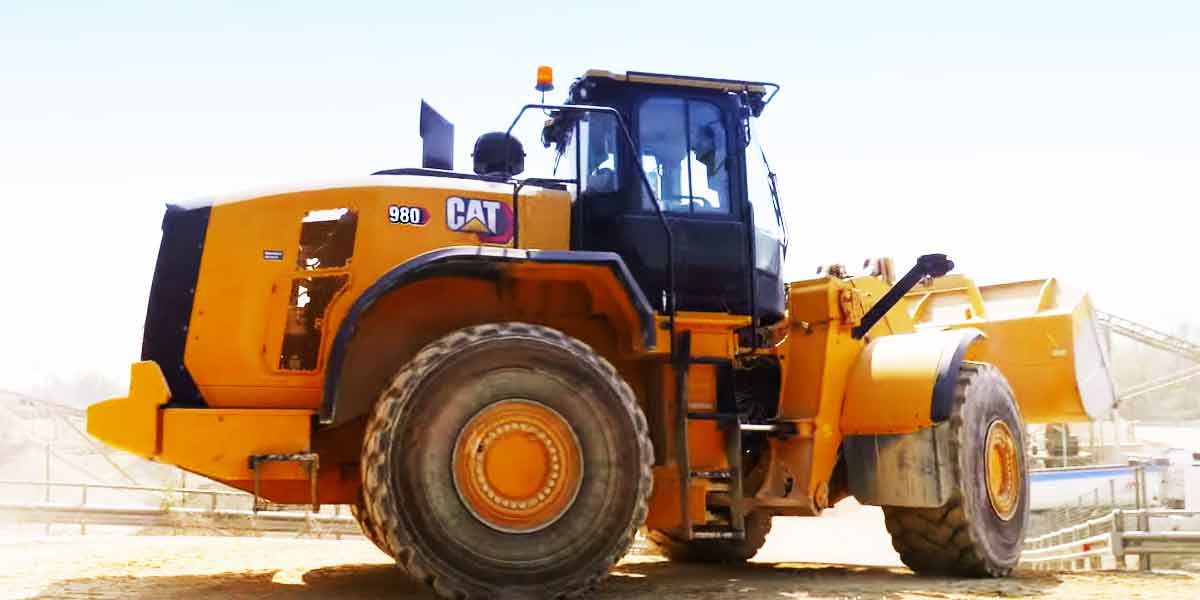

Cat 980 loader is a high-performance, low-fuel-consumption wheel loader that can lift heavy objects with ease. Its planetary power shift transmission has been enhanced for improved speed and easier ramp climbing. The CAT 980 is a leading industry productivity machine, with modern improvements to the cab, Electronic Monitoring System, and gauge cluster. Analog-style gauges feature green and red zone indicators for easy operator comparison. The right-hand door has been replaced with a vertical hinged window, and Command Control Steering ensures operator comfort.
Cat 980 Loader Specs
| Brand | Cat |
| Model | 980H |
| Type | Wheel Loader |
| Years Made | 2006-2014 |
Engine
To maximize output and efficiency, Caterpillar programmed the C15 engine’s electronic controls to deliver a constant net horsepower even when operating under full load.
| Brand | Cat |
| Model | C15 ACERT |
| No. of Cylinders | 6 |
| Emission | Tier 3 Final |
| Type | Diesel 4 stroke |
| Aspiration | Turbocharged-Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation | Counterclockwise |
| Compression Ratio | 17.0:1 |
| Rated Speed | 1800 RPM |
| Torque Speed | 1200 RPM |
| US | Metric | |
|---|---|---|
| Horsepower (gross) | 393 HP | 293 kW |
| Horsepower (net) | 354 HP | 264 kW |
| Displacement | 928 cu in. | 15.2 L |
| Bore | 5.4 in. | 13.7 cm |
| Stroke | 6.7 in. | 17.1 cm |
| Maximum Torque | 1,312 ft-lbs | 1,779 N•m |
Capacity
| Capacity | US | Metric |
|---|---|---|
| Fuel Tank Capacity | 120 gal | 453 L |
| Engine Oil Capacity | 22 gal | 83 L |
| Coolant Capacity | 17 gal | 64 L |
Transmission
Cat’s planetary power shift transmission has been improved with new features that boost its speed, make it easier to climb ramps, and make life easier for the driver.
| Transmission | Power shift |
| Gear | 4F/4R electronic control |
Travel Speed
| Gear | US | Metric |
|---|---|---|
| Max. Forward Speed | 22 mph | 36 km |
| Max. Reverse Speed | 25 mph | 41 km |
Hydraulic System
| US | Metric | |
|---|---|---|
| Max Flow at 2100 RPM | 123 GPM | 464 LPM |
| Std. System Pressure | 1000 psi | 69 Bar |
| Hydraulic Tank Capacity | 33 gal | 125 L |
Hydraulic Cycle Time
| Rackback | 3 Sec. |
| Raise | 6.5 Sec. |
| Dump | 2.5 Sec. |
| Lower | 3.5 Sec. |
Performance
| US | Metric | |
|---|---|---|
| Breakout Force | 45,379 lbs | 201 kN |
| Tipping Load | 39,441 lbs | 17,895 kg |
Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 66,000 lbs | 29,945 lbs |
Buckets
| US | Metric | |
|---|---|---|
| Bucket Capacity Range | 5.64-10.73 yd³ | 4.31-8.20 m³ |
Dimensions
| US | Metric | |
|---|---|---|
| Height to Top of ROPS | 149 in. | 378 cm |
| B-Pin Height | 178 in. | 451 cm |
| Lift Arm Clearance @ Maximum Lift | 148 in. | 376 cm |
| Wheelbase | 146 in. | 370 cm |
Tire Size
| Metric | |
|---|---|
| Front | 29.5R25 |
| Rear | 29.5R25 |
If you run a medium-sized business, you need a loader like the Cat 980h. You can expect superior efficiency and cost savings from it. Look into some of the other machines in the Cat 900 series if you need more muscle. Consider Komatsu WA500-8, Volvo L220H, John Deere 844K-III, Liebherr L 586 XPower, and Doosan DL550-5 loaders if you're looking for a manufacturer other than Cat.Cat 980 Review
