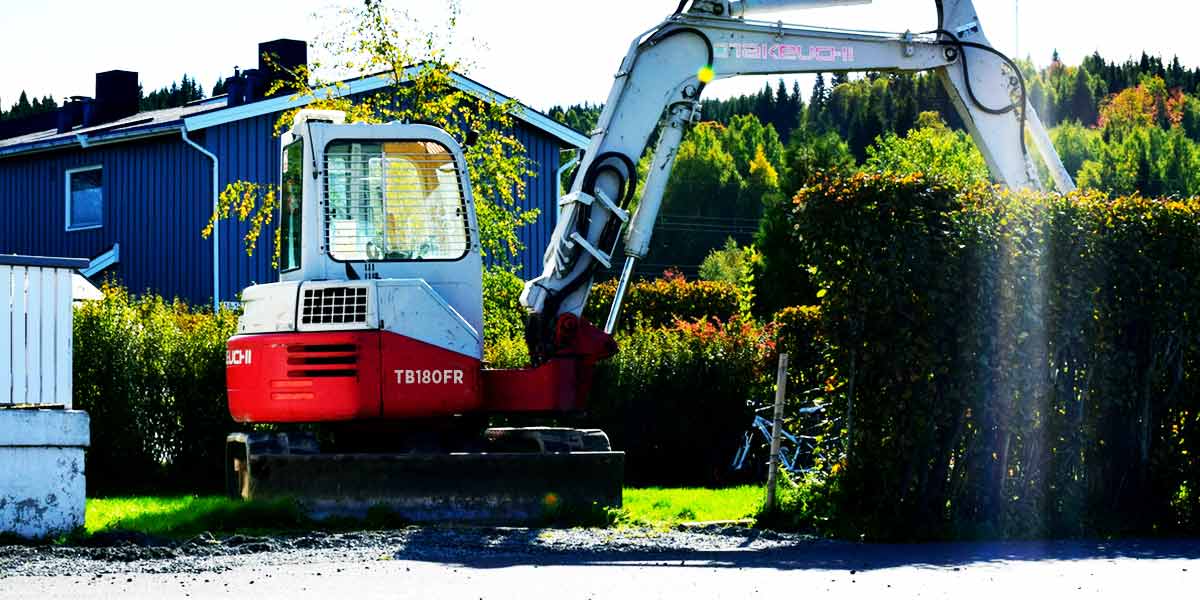

Takeuchi TB180FR excavator is engineered to meet or exceed customer expectations for durability, dependability, and performance. The Takeuchi tb180 is a 1-ton hydraulic excavator that features an STS offset boom system. The TB180FR can slew 360°, far beyond the excavator’s track width, thanks to the patented STS offset boom system and zero tail swing. When loading and unloading dump trucks or trailers, this design improves productivity and efficiency.
The main functions of the Takeuchi TB180FR are powered by an advanced hydraulic system. The Tier 4 compliant Yanmar engine outperforms previous models in terms of horsepower. The TB180FR Takeuchi can be outfitted with a wide range of attachments to suit a variety of applications.
Takeuchi Tb180fr Specs
Takeuchi tb180fr specs listed below apply to machines with serial numbers 17830004 and above. The specifications of the Takeuchi tb180fr may vary based on the year of manufacturing.
Brand | Takeuchi |
Model | Tb180fr |
Type | Full Rotation Excavator |
Years Made | 2008-2012 |
Engine Specs
Brand | Yanmar |
Engine Model No | 4TNV98-STB1 |
Type | Diesel |
No. of Cylinders | 4 |
Aspiration | Naturally |
Emissions | Interim Tier 4 |
Combustion | Direct injection |
Rated Speed | 2200 RPM |
Max. Torque | 1500 RPM |
Starter | 12 V – 3.0 kW |
Alternator | 12 V – 0.66 kW |
Battery | 12 V – 72 A. h |
US | Metric | |
---|---|---|
Horsepower Gross | 64.5 HP | 48.0 kW |
Horsepower Net | 60.6 HP | 45.1 kW |
Torque Power | 179 ft-lb | 242 N-m |
Displacement | 202 cu in. | 3319 cc |
Bore and Stroke | 3.2×3.3 in. | 8.2×8.4 cm |
Lubrication | 10.8 qts | 10.2 L |
Cooling System | 10.5 qts | 9.9 L |
Fuel Tank Capacity | 24.3 gal | 92.0 L |
Performance
US | Metric | |
---|---|---|
Max. Digging Depth Long Arm | 179 in. | 455 cm |
Max. Digging Depth Standard | 165 in. | 420 cm |
Maximum Dig Height Long Arm | 254 in. | 647 cm |
Maximum Dig Height Standard | 247 in. | 628 cm |
Maximum Vertical Dig Depth Long Arm | 138 in. | 350 cm |
Maximum Vertical Dig Depth Standard | 125 in. | 317 cm |
Max. Dump Height Long Arm | 176 in. | 447 cm |
Max. Dump Height Standard | 169 in. | 430 cm |
Min. Dump Height Long Arm | 55 in. | 141 cm |
Min. Dump Height Standard | 69 in. | 176 cm |
Max. Reach | 283 in. | 720 cm |
Maximum Reach Ground Level | 278 in. | 705 m |
Max. Bucket Digging Force | 16334 lbs | 7409 kg |
Max. Arm Digging Force | 8022 lbs | 3638 kg |
Arm Length | 79 in. | 200 cm |
Blade Maximum Lower | 159 in. | 405 cm |
Blade Maximum Lift | 199 in. | 505 cm |
Traction Force | 18719 lbs | 8491 kg |
Swing System
Offset Working Distance Right | 30° |
Offset Working Distance Left | 15° |
Slew Speed | 9.9 RPM |
Travel Speed
US | Metric | |
---|---|---|
Low Speed | 1.7 mph | 2.8 km |
High Speed | 3.4 mph | 5.6 km |
Hydraulic System
US | Metric | |
---|---|---|
Total Hydraulic Flow | 52.5 GPM | 198 Lpm |
Auxiliary Flow – Primary Circuit | 36.6 GPM | 138.4 Lpm |
Auxiliary Flow – Secondary Circuit | 15 gal | 58 L |
Hydraulic System Pressure | 4000 psi | 276 Bar |
Weight
US | Metric | |
---|---|---|
Operating Weight with Cab Rubber | 18370 Ibs | 8332 kg |
Operating Weight with Cab Steel | 18820 Ibs | 8537 kg |
Dimensions
US | Metric | |
---|---|---|
Height | 109 in. | 277 cm |
Length | 243 in. | 618 cm |
Undercarriage Length | 113 in. | 286 cm |
Undercarriage Width | 91 in. | 230 cm |
Ground Clearance | 13.8 in. | 35 cm |
The Takeuchi TB180FR Tilt-Up excavator is a reliable workhorse in today's construction industry. It has the power, stability, and maneuverability to handle any job site.Takeuchi TB180FR Review
Performance
Features
Reliability
Drive
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Takeuchi Tb180fr manual, please specify by commenting.
