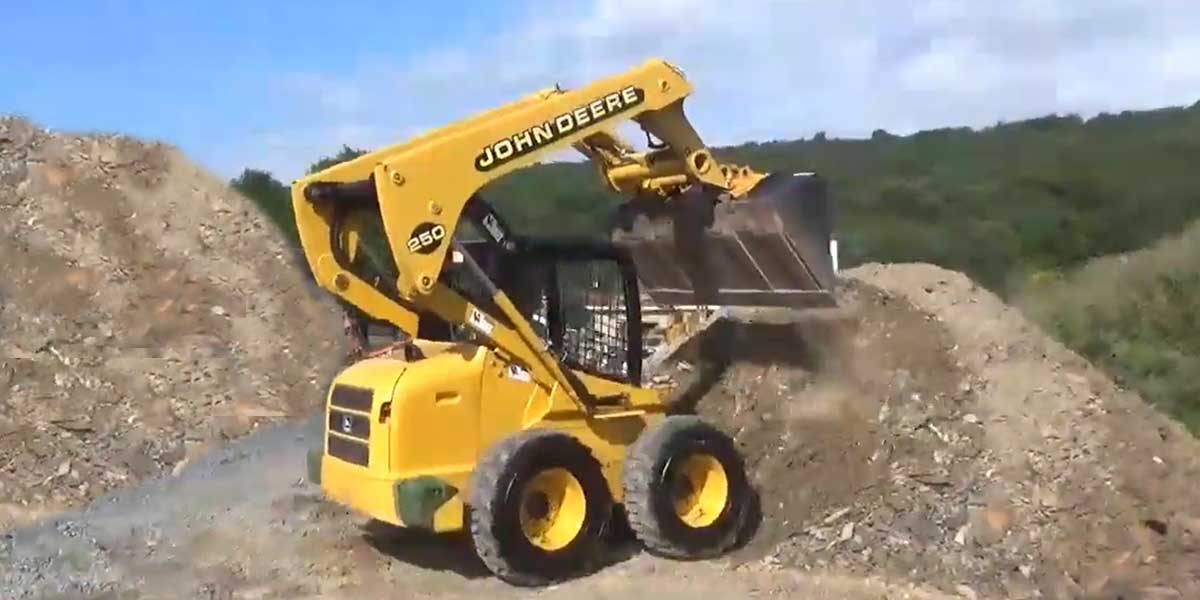

Jd 250 Skid Steer Specs
| Brand | John Deere |
| Model | 250 |
| Type | Skid Steer |
| Years Made | 1999-2004 |
Engine
| Brand | John Deere |
| Model | 3029T |
| Type | Diesel liquid |
| No. of Cylinders | 3 |
| Compression Ratio | 17.8:1 |
| Firing Order | 1-2-3 |
| Lubrication | Full pressure |
| Fuel Injection | Rotary injection |
| Combustion System | Direct injection |
| Aspiration | Turbocharged |
| Air Cleaner | Dry-type |
| Oil Filter | Full flow |
| Rated Speed | 2400 RPM |
| US | Metric | |
|---|---|---|
| Gross Power | 64.4 HP | 48.0 kW |
| Net Power | 61 HP | 45.5 kW |
| Displacement | 179 cu in. | 2900 cc |
| Bore and Stroke | 4.17×4.33 in. | 10.6×11.0 cm |
| Fuel Capacity | 15 gal. | 91 L |
Recommended Engine Lubricants
| Engine Oil | John Deere torq-gard supreme |
| Engine Oil 2 | John Deere Plus-50 |
| Engine Coolant | John Deere cool-gard |
Engine Dimensions
| US | Metric | |
|---|---|---|
| Length | 28.2 in | 71.6 cm |
| Width | 20.5 in. | 52.1 cm |
| Height | 32.3 in. | 82.0 cm |
Engine Weight
| US | Metric | |
|---|---|---|
| Engine Weight (Dry) | 705 kg | 320 kg |
Performance
| US | Metric | |
|---|---|---|
| Operating Capacity | 1750 Ibs | 793 kg |
| Counterweights | 2100 Ibs | 953 kg |
| Tipping Load | 3600 lbs | 1633 kg |
| Foundry Bucket | 5500 lbs | 2495 kg |
| Construction Bucket | 3900 lbs | 1769 kg |
Transmission
| Type of Transmission | Hydrostatic four-wheel drive |
| US | Metric | |
|---|---|---|
| Axle Torque | 4725 ft-lb | 6406 Nm |
Travel Speed
| US | Metric | |
|---|---|---|
| Maximum Travel Speed | 6.9 mph | 11.1 km |
Capacity
| US | Metric | |
|---|---|---|
| Hydraulic System | 6 gal | 23 L |
| Hydraulic Reservoir | 4.1 gal | 15.6 L |
| Cooling System | 2.5 gal | 9.5 L |
| Engine Oil | 1.7 gal | 6.5 L |
Hydraulics
| Hydraulic Horsepower | ||
|---|---|---|
| Standard Flow | 31.8 HP | 23.8 kW |
| High Flow | 54.2 HP | 40.4 kW |
| US | Metric | |
|---|---|---|
| Hydraulic Pump | 15 gal | 56.7 L |
| Hydraulic System Relief Pressure | 3100 psi | 21 374 kPa |
| Boom Breakout Force | 3100 lbs | 1406 kg |
| Bucket Breakout Force | 5500 lbs | 2495 kg |
Recommended Hydraulic Oil
| Hydraulic Oil | John Deere Hy-gard |
Hydrostatics
| Hydrostatic Motors | Geroler fixed displacement 30 series |
| Hydrostatic Pumps | Tandem variable displacement piston pump |
| Max Displacement | 2.48 cu in. | 40.6 cm³ |
| Hydrostatic System Relief Pressure | 5000 psi | 34474 kPa |
Recommended Hydrostatics Oil
| Hydrostatic Oil | John Deere Low Viscosity hy-gard |
Dimensions
| US | Metric | |
|---|---|---|
| Wheelbase | 42.3 in. | 107.5 cm |
| Height | 143.2 in. | 363.7 cm |
| Height to ROPS | 76.8 in. | 195.0 cm |
| Height to Hinge Pin | 115.2 in. | 292.5 cm |
| Overall Width without Bucket | 69.0 in. | 175.0 cm |
| Overall Width with Bucket | 72.0 in. | 182.9 cm |
| Overall Length without Bucket | 102 in. | 259.1 cm |
| Overall Length with Bucket | 125.8 in. | 319.6 cm |
| Ground Clearance | 9.6 in. | 24.4 |
| Dump Height | 90.2 in. | 229.0 cm |
| Dump Reach | 28.1 in. | 71.5 cm |
| Angle of Departure | 27° |
| Bucket Rollback | 35° |
| Dump Angle | 45° |
Weight
| US | Metric | |
|---|---|---|
| Operating Capacity | 6290 Ibs | 2854 kg |
Tire Size
| Size | 12×16.5 |
John Deere 250 Series 2 Skid Steer Price
According to the review at the end of 2021, the John Deere 250 series 2 prices are as follows.
| US | Metric | |
|---|---|---|
| 1999 John Deere 250 Skid Steer | 2500 | $11000 |
| 2000 John Deere 250 Skid Steer | 1000 | $15000 |
| 2001 John Deere 250 Skid Steer | 2000 | $16000 |
| 2002 John Deere 250 Skid Steer | 1200 | $17000 |
| 2003 John Deere 250 Skid Steer | 1500 | $18000 |
| 2004 John Deere 250 Skid Steer | 1500 | $21500 |
Although the John Deere 250 series has aged a lot, it's still a good machine. In addition, its appearance is liked by many people. Fixing some bugs compared to Series 1 makes Series 2 attractive. For those looking for more power and performance, I recommend turning to the John Deere 300 series.John Deere 250 Skid Steer Reviews
