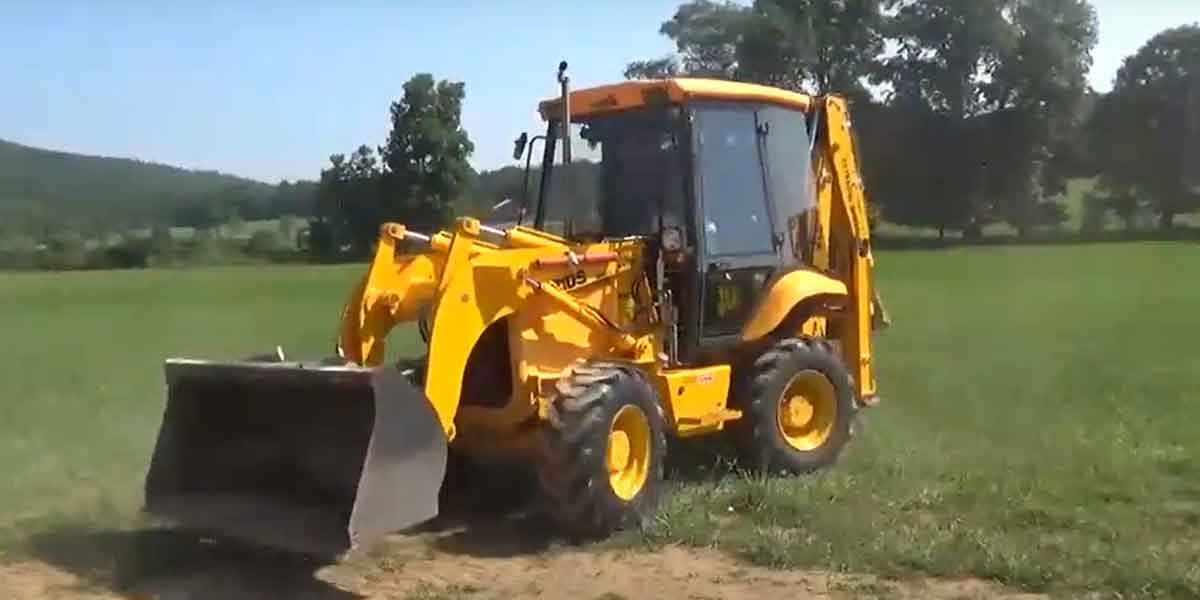

JCB 210S backhoe loader is a popular model in the JCB lineup. The JCB 210 backhoe is an excellent choice for those who need to load and clear material from the ground, dig foundations and trenches, and perform other similar tasks.
The 4-cylinder turbo diesel engine with a power rating of 60 hp powers the JCB 210S backhoe loader. It can generate a breaking force of up to 8700 lbs and an operating weight of up to 10,000 lbs. As a result, it can easily handle any task you throw at it.
JCB 210S Backhoe Specs
| Brand | JCB |
| Model | 2CX (European) 210S (North American) |
| Type | Backhoe loader |
| Years Made | 1997-2004 |
Engine
| Brand | Perkins |
| Model | 1004-42AR |
| Build Number | AR50696 |
| Type | Diesel |
| No. of Cylinders | 4 |
| Aspiration | Natural |
| Air Cleaner Type | 2 stage, dry type |
| Rated Speed | 2200 RPM |
| Compression Ratio | 18.5:1 |
| Firing Order | 1-3-4-2 |
| Specs | US | Metric |
|---|---|---|
| Horsepower | 75 HP | 56 kW |
| Displacement | 258 cu in. | 4228 cc |
| Bore | 4.1 in. | 10.3 cm |
| Stroke | 5.0 in. | 12.7 cm |
Fluid Capacities
| Specs | US | Metric |
|---|---|---|
| Engine Oil Capacity | 2.5 gal | 11.1 L |
| Coolant Capacity | 2.6 gal | 12.0 L |
| Fuel Tank Capacity | 18.3 gal. | 83.2 L |
Transmission
| Transmission Type | Syncro shuttle |
| Number of Speed | 4 Forward / 4 Reverse |
Travel Speed
| Gear | US | Metric |
|---|---|---|
| Max. Forward Travel Speed | 18 mph | 30 km |
| Max. Reverse Travel Speed | 12 mph | 20 km |
Backhoe Performance
| US | Metric | |
|---|---|---|
| Lift Capacity – Max. Load Std. Boom | 1650 lbs | 748 kg |
| Digging Force | 9260 lbs | 4200 kg |
| Digging Depth | 120 in. | 305 cm |
| Loading Height | 127 in. | 323 cm |
| Loading Reach | 55 in. | 140 cm |
Loader Bucket Size and Weight
| General Purpose Bucket | US | Metric |
|---|---|---|
| Lift Capacity | 4850 lbs | 2200 kg |
| Bucket Breakout Force | 7920 lbs | 3592 kg |
| Bucket Width | 73 in. | 185 cm |
| Bucket Capacity | 0,79 yd³ | 0,60 m³ |
Hydraulic System
| Main Hydraulic Pump | Single/67910 |
| Rotation | Clockwise |
| Mounting | Engine timing case |
| Flow at 2000 rev/min | 19 gal (72 L) |
| Auxiliary Hydraulic Pump (if fitted) | Single/4240J |
| Rotation | Anti-clockwise |
| Mounting | Auxiliary take-off |
| Flow at 2000 rev/min | 7.4 gal (28 L) |
| Relief Pressure | 3300 psi (227 Bar) |
| Capacity | US | Metric |
|---|---|---|
| Hydraulic System | 12.8 gal. | 58 L |
Dimensions
| US | Metric | |
|---|---|---|
| Length | 202 in. | 513 cm |
| Width | 73 in. | 185 cm |
| Height | 118 in. | 300 cm |
| Wheelbase | 78 in. | 198 cm |
| Ground Clearance | 12.2 in | 31 cm |
Tire Size
| Front Tires | 12.5x18x10 |
| Rear Tires | 12.5x18x10 |
Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 14000 lbs | 6350 kg |
The JCB 210s backhoe is ideal for medium-sized jobs in tight spaces. All-wheel steering is also a beneficial advantage. In America, sometimes there are problems finding spare parts. If a JCB dealer is in your immediate vicinity, it can be a good purchase. If you're looking for something more popular, you can check out the Caterpillar 420F2, John Deere 310SL, Case 580N, New Holland B95C, Komatsu WB97S-5, and Volvo BL71B.JCB 210S Review
Reliability
Specifications
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need JCB 210s manual, please specify by commenting.
