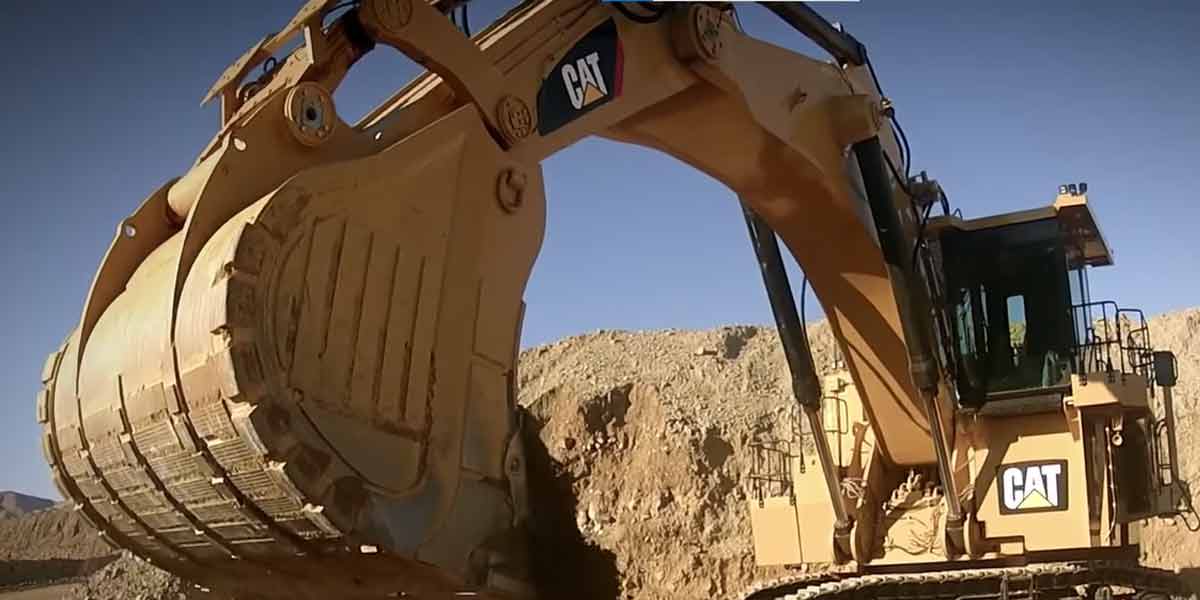

Cat 6020B excavator is designed for ease of use, with a straightforward, user-friendly layout that keeps operators focused on the task at hand. The Caterpillar 6020B is a high-performance, all-purpose loader with exceptional performance and productivity. It’s designed to work hard and fast.
The operator’s cab on the Caterpillar 6020B excavator was built from the ground up to improve safety by providing the best view of the mining environment possible. The cab is outfitted with a wide field of vision camera system that provides high-definition video from all sides of the machine, as well as an intuitive, user-friendly control panel for controlling all onboard functions. The cab also provides excellent environmental comfort with its air conditioning system, heating system for cold climates, ergonomic seat, and adjustable steering wheel.
Cat 6020B Specs
| Brand | Caterpillar |
| Model | 6020B |
| Series | B series |
| Type | Hydraulic mining shovel |
| Years Made | 2015-Today |
Engine
| Brand | Cat |
| Model | C32 |
| Type | Diesel |
| No of Cylinders | 12 |
| Emission | U.S. EPA Flex |
| Aspiration | Turbocharged |
| Cooling System | Air-cooled |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | DOC |
| Compression Ratio | 15.0:1 |
| Rated Speed | 1800 RPM |
| Torque Speed | 1200 RPM |
| Specs | US | Metric |
|---|---|---|
| Horsepower | 1043 HP | 778 kW |
| Bore and Stroke | 5.7×6.4 in. | 14.5×16.2 cm |
| Displacement | 1958.9 in³ | 32.1 L |
| Fuel Tank Capacity | 951 gal. | 3600 L |
Dimensions of Engine
| Dimension | US | Metric |
|---|---|---|
| Length | 73.8 in. | 187.4 cm |
| Width | 63 in. | 160.0 cm |
| Height | 53.9 in. | 137.0 cm |
Electrical System
| System Voltage | 24V |
| Batteries (12V each) | 6 × 210 Ah |
Cat 6020b Weight
| US | Metric | |
|---|---|---|
| Operating Weight | 493,830 lbs | 224,000 kg |
Performance
| US | Metric | |
|---|---|---|
| Bucket Capacity | 15.7 yd³ | 12.0 m³ |
| Bucket Payload | 24 tons | 22 tonnes |
| Max. Digging Depth | 26 ft 7 in | 8.1 m |
| Max. Digging Reach | 52 ft 2 in | 15.9 m |
| Max. Digging Height | 45 ft 7 in | 13.9 m |
| Max. Digging Tearout Force | 146,125 lbs | 650 kN |
| Max. Digging Breakout Force | 164,050 lbs | 730 kN |
Hydraulic System
| US | Metric | |
|---|---|---|
| Maximum Total Oil Flow (Pump 6x) | 621 GPM | 2350 LPM |
| Maximum Swing Oil Flow | 216 GPM | 783 LPM |
| Maximum Pressure, Swing | 5080 psi | 350 bar |
| Maximum Pressure, Travel | 4495 psi | 310 bar |
Swing System
| Swing Drives | 2 compact planetary transmissions with axial piston motors |
| Swing Ring | Triple-race roller bearing with sealed internal gearing |
| Maximum Swing Speed | 4.9 RPM |
Backhoe
| Type | Standard rock bucket |
| Tooth System | Cat C85 system |
| No. of Teeth | 6 |
| US | Metric | |
|---|---|---|
| Capacity 1:1 | 15.7 yd³ | 12 m³ |
| Capacity 2:1 | 13.8 yd³ | 10.6 m³ |
| Capacity Struck | 12 yd³ | 9.2 m³ |
| Total Width | 14 ft. 6 in. | 345 cm |
| Inner Width | 9 ft. 10 in. | 300 cm |
| Weight including standard wear package | 28,220 lb | 12 800 kg |
| Maximum Material Density | 3,030 lb/yd³ | 1.8 t/m³ |
Dimensions
| US | Metric | |
|---|---|---|
| Cab Height | 251 in | 637 cm |
| Length Of Track On Ground | 293 in. | 745 cm |
| Track Width | 246 in. | 624 cm |
| Ground Clearance | 33 in. | 83 cm |
Operator’s Cab
| US | Metric | |
|---|---|---|
| Length | 88 in. | 223 cm |
| Width | 64 in. | 163 cm |
| Height | 81 in. | 207 cm |
| Operator’s Eye Level | 18 ft | 5.5 m |
Undercarriage
| Maximum Tractive Force | 239,560 lbf 1066 kN |
| Gradeability of Travel Drives | 56% |
| Track Pads (each side) | 49 |
| Bottom Rollers (each side) | 8 |
| Support Rollers (each side) | 2 plus slide |
| Travel Drives (each side) | 1 planetary transmission with 2 two-stage axial piston motors |
| Parking Brakes | Wet multiple disc brake |
The Cat 6020B excavator is intended for professional who requires a loader capable of doing everything from digging and hauling to digging and dumping. With a long list of standard specs and options, the Caterpillar 6020B lets you work all day.Cat 6020B Review
Performance
Specifications
Reliability
Drive
Price
The information presented here will help you decide if this product is the best fit for your situation. Though we do our best to provide all the information you need, things can always change. So be sure to do your own research before purchasing a vehicle, because the information in this review may become outdated over time. If you would like exact details, please contact the vendor directly. If you need Cat 6020b manual, please specify by commenting.
